PowerXL Classic Air Fryer HF-509DT (4 qt.) review

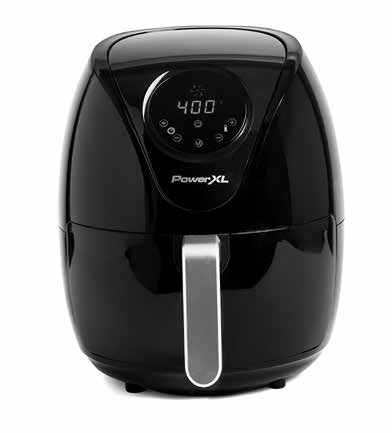

The PowerXL Classic Air Fryer HF-509DT is the smallest configuration in its 4-, 5-, and 7-quart manual family: one digital pull-out basket, a removable fry tray, a 4-quart maker-listed basket capacity, and 1,200 watts. Its manual gives a 180–400°F setting range and identifies a U.S. 120 V / 60 Hz supply. That combination makes the HF-509DT a sensible earlier-model reference if you want familiar digital controls and a moderate single-basket load, not a substitute for a two-zone appliance or a mini oven.

A compact load, not a second cooking zone

The basket and fry tray sit together in one drawer. The tray lifts food above the basket bottom, but it is not a second basket or a separately controlled cooking level. The manual’s capacity chart gives 16 ounces of fries as the guide for the 4-quart configuration. Treat that as a particular food example, not a promise about servings or the amount of every ingredient that fits in a loose layer. The same booklet advises smaller batches when food is crowded and recommends shaking small pieces partway through so hot air can move around them.

For a couple of portions or a side dish, that narrower load can be easier to handle than a larger drawer. If you usually cook different foods at once and need them to finish together, the HF-509DT cannot do that: there is one cooking area and one set of controls. A larger basket in the same Classic family is the more relevant comparison if your main frustration is batch size, but changing from four to five quarts still does not create independent zones.

Four food presets, with the rest left to you

The model-labelled manual shows a digital display, power and menu buttons, and separate time and temperature adjustment buttons. On the HF-509DT panel, the listed food presets are French fries, fish, chicken, and steak. The power button’s starting point is 370°F for 15 minutes; the timer can be adjusted from zero to 60 minutes in one-minute steps, and temperature from 180°F to 400°F in ten-degree steps. A preset is a convenient starting value, not a sensor that knows the size or thickness of your food. You can choose your own time and heat, then add time if the food needs it.

Do not assume that every mode shown in the shared manual applies to this smaller version. Roast, Bake, and Shrimp presets are specifically listed only for the 5- and 7-quart models. The booklet does describe reheating food by manually setting time and temperature, but the HF-509DT does not have a named Reheat preset in its four-preset list. It also does not document a Dehydrate, Grill, or Broil mode. If one of those is an essential dedicated function rather than an occasional cooking task, choose accordingly.

Plan for hand washing the basket

Cleanup is a real tradeoff. The manual says only the fry tray is dishwasher-safe; the basket itself is washed by hand with hot water, mild detergent, and a nonabrasive sponge. Both food-contact pieces have a nonstick surface, but the manual does not name its chemistry or support a PFAS-free claim. Avoid abrasive tools, let hot parts cool, and keep the electronic housing dry. If your must-have is putting the basket itself in a dishwasher, the HF-509DT is not a fit even though its smaller insert can go in one.

Check the counter and the circuit

The specification table lists 1,200 watts at 120 volts and 60 hertz. The instructions call for a dedicated wall outlet, advise against extension cords, and require at least five inches of free space above and around the appliance while it operates. Exterior width, depth, height, and weight are not provided in this manual, so measure your intended counter space rather than estimating from the illustration. The control diagram and the component list are useful, but the booklet warns that package contents can vary and some attachments may be sold separately; confirm a seller’s box contents rather than assuming extra racks or cookware come with a particular unit.

How your answers change the fit

On the finder, choose basket form, one basket, one cooking area, and digital controls if those are what you want. A four-quart minimum can include the HF-509DT; a five-quart minimum correctly rules it out. It meets a documented 120 V / 60 Hz requirement and reaches 400°F, but a two-basket or two-zone requirement does not fit its operating plan. The manual does not establish a viewing window, so do not treat it as a match when seeing food through the basket is essential. A basket-dishwasher requirement and a dedicated Dehydrate choice also exclude it.

The HF-509DT is listed here as an earlier manual-documented configuration, not as a claim about present stock. If its combination of four-quart capacity and 1,200-watt load is the right scale, compare the exact model label and included parts on any listing. If you need a larger single batch and extra preset choices, the 5-quart HF-8959DT is the closest documented family alternative. Neither model replaces a true dual-zone fryer.

PowerXL Classic Air Fryer owner’s manual (HF-509DT, HF-8959DT, and HF-196DT models).
