Philips Premium Airfryer XXL HD9630/28, HD9630/98 and HD9630/96 review

The Philips Premium Airfryer XXL HD9630/28 (white), HD9630/98 (black) and HD9630/96 (black) are discontinued, earlier basket variants for shoppers comparing substantial single-batch capacity rather than dual-zone timing. Philips’s exact pages describe a 7.3 L pan, say it can fit a whole chicken or up to 1.4 kg of fries, and claim up to six portions. The /98 and /96 listings also headline “3lb/4qt,” a figure that conflicts with the detailed pan description; I keep quart capacity unknown rather than reconciling the manufacturer’s labels. Across the documented variants, the plan is one large pan, analogue controls, one fat reducer and one mesh basket—not two independent schedules.

XXL describes a one-pan batch, not two dinner zones

The 7.3 L number describes the pan volume; the separate 1.4 kg value is Philips’ fries-load limit. They answer different questions. Philips’ six-portion wording is its own serving estimate, not a promise that every dish feeds six. The manual’s chart varies by food: some amounts are limited by weight, others by count or a single layer. For larger fry batches it directs cooks to shake, turn or stir two to three times. A whole chicken fit claim also depends on its size and clearance from the heating element.

There is still one removable drawer, one basket and one temperature control. It will not cook vegetables at one setting and chicken at another simultaneously. The larger pan is for a bigger or more flexible single cooking plan. If two independently controlled zones matter more than total volume, a real dual-drawer or divided-zone product is the better category to compare.

The fat reducer changes setup and cleanup

The manual locates the fat reducer below the basket and says not to operate the pan without both parts in place. Rendered fat collects below; the mesh bottom lifts out for cleaning. Both parts are integral to the documented setup, not automatically optional accessories. Philips’ page also lists air frying, baking, grilling, roasting and reheating. No Dehydrate or Proof program is documented for the exact HD9630/28 materials.

Philips calls the design “Fat Removal technology,” describing separation and capture of rendered fat. This is a mechanical food-preparation feature, not a health guarantee. The unit still needs normal kitchen supervision, the removable parts are hot immediately after cooking, and grease should be handled only after the appliance has cooled enough for safe removal. The manual’s handling and cleaning sequence is more useful than a broad health claim.

Analogue operation is simple but hands-on

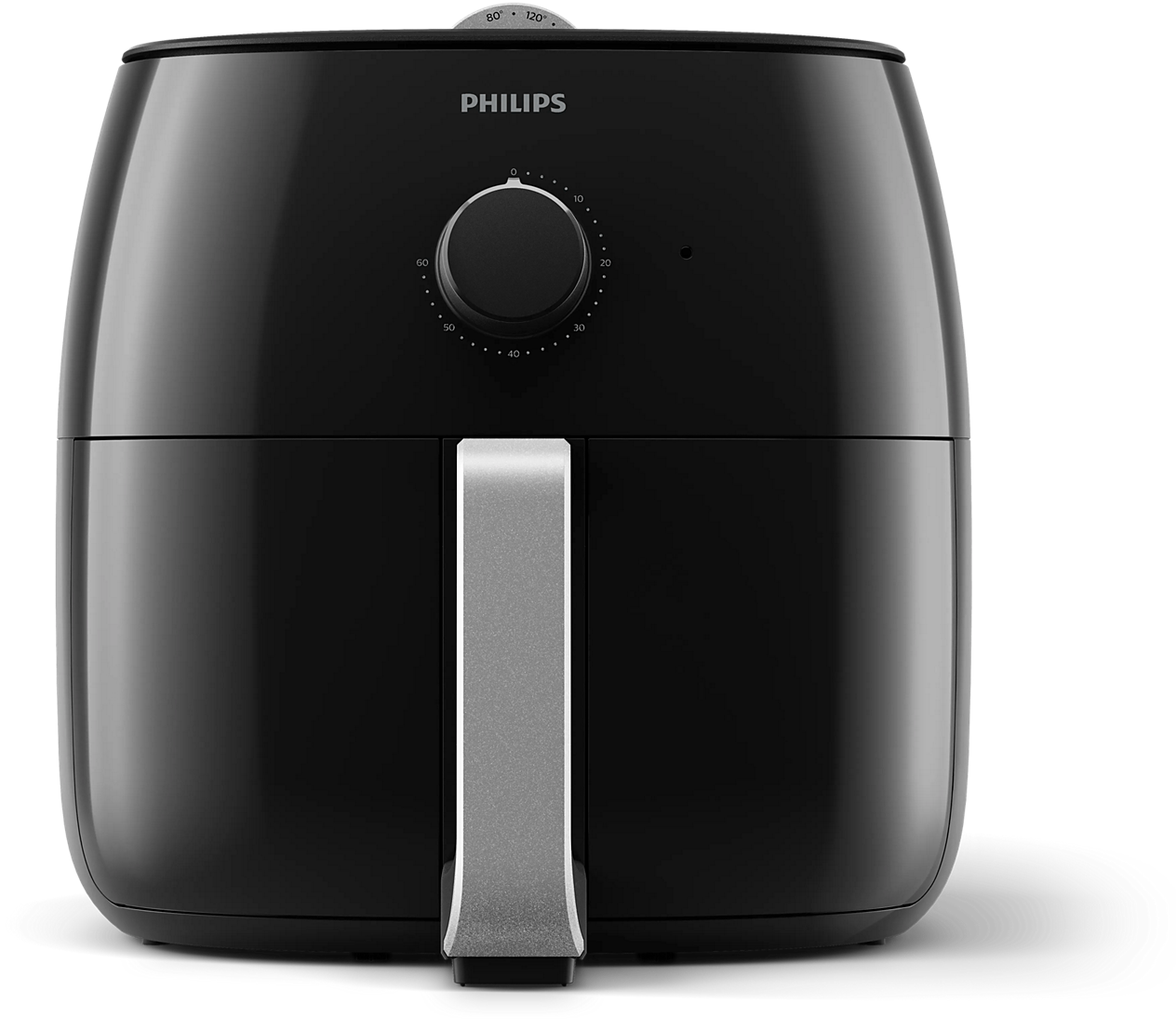

The exact HD9630/28 and /98 sheets and the /96 sheet identify analogue controls: temperature from 80 to 200°C (about 176–392°F) and a timer up to 60 minutes. The exact /96 product page copy calls its controls “Digital,” while its exact specification table says analogue and the exact front image shows two rotary dials. I use the detailed interface field and physical controls, while retaining the copy mismatch. The manual labels a timer/power-on knob and a temperature-control knob, recommends no preheating, and gives a food-specific chart rather than a stored program list. There is no touch menu, app, remote start, digital preset count or automatic dual-zone syncing. If you like dials and want a longer single run than a 30-minute timer, this is a better fit than the smaller HD9220/26 or /28. If you need an exact numeric minimum in Fahrenheit, use the source’s Celsius values or confirm how the dial is marked on the physical unit.

The manual emphasizes shaking or turning some loads, including large fry batches, and warns not to overfill past the MAX mark. The air fryer does not require preheating, but recipes are not self-correcting: food thickness, moisture, starting temperature and load depth still affect the result. Use a thermometer or food-safe doneness method where appropriate; no independent lab result is claimed here.

Dishwasher care and nonstick caution

The exact manual says the pan, basket, fat reducer and removable mesh parts can be washed in a dishwasher. It also describes their nonstick coating and advises against metal utensils or abrasive cleaning materials. After cooking, remove oil or rendered fat from the bottom of the pan and let all parts cool. Philips does not name the coating chemistry or state that food-contact surfaces are PFAS-free. A buyer who requires that declaration should treat the material claim as unconfirmed, regardless of the fact that the parts are dishwasher-safe.

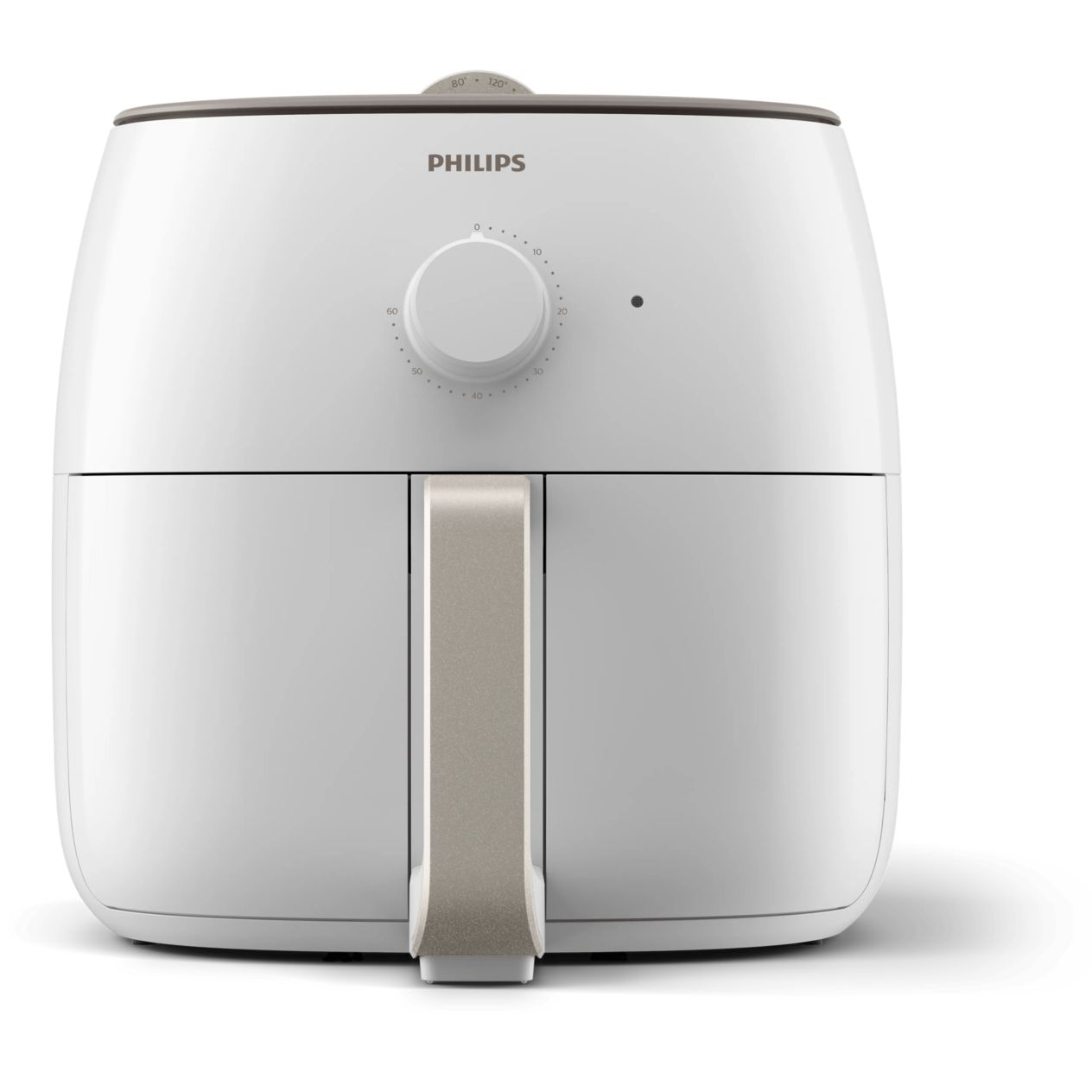

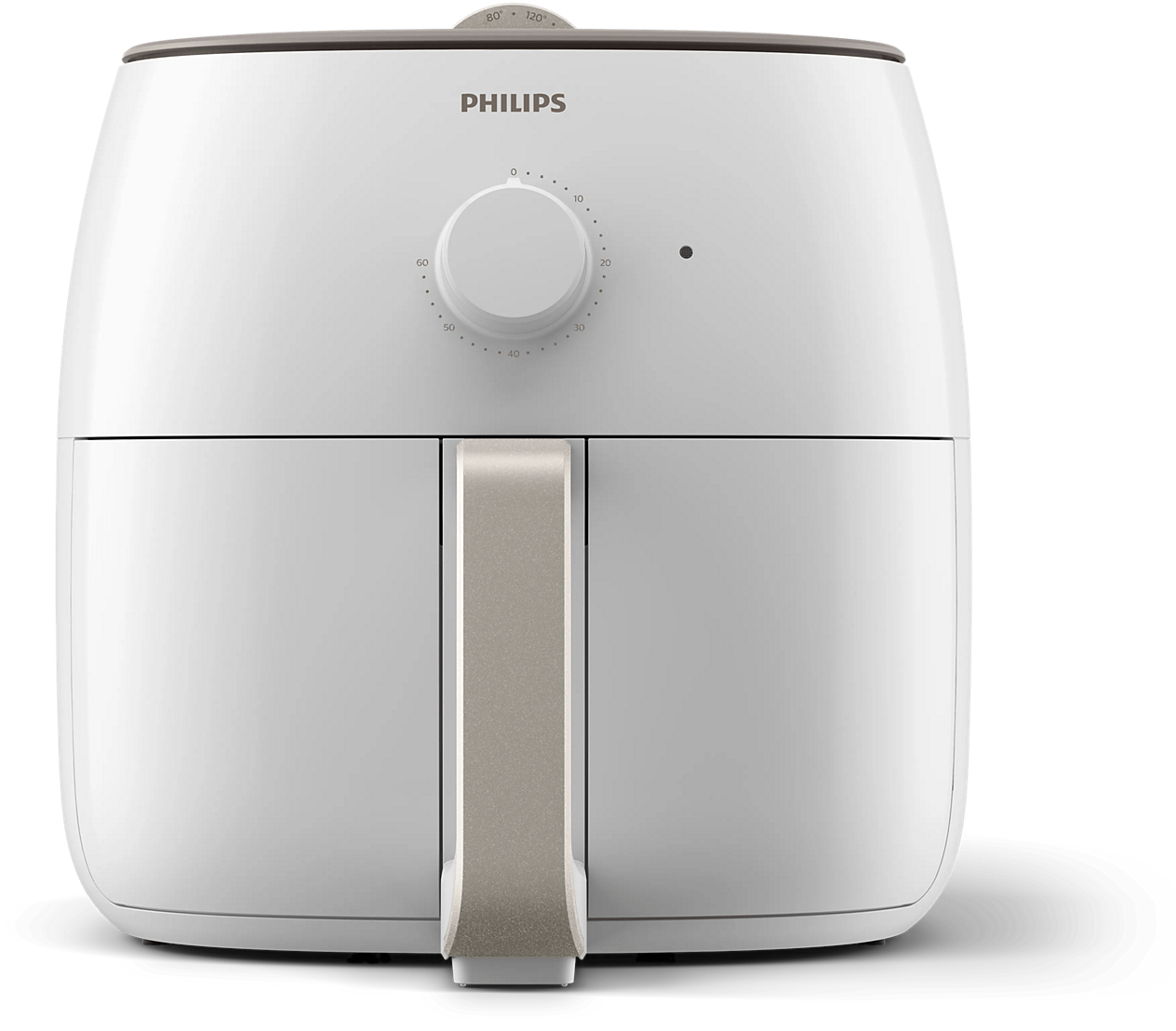

The exact /28 sheet says white; the /98 and /96 pages and their black-variant images establish different finishes without changing the one-pan plan. Philips lists 1,725 W for these sheets but does not state voltage or frequency, so a strict 120 V / 60 Hz requirement remains unconfirmed. The direct support page links a quick-start guide and the longer user manual; the quick-start cover names the HD9630–HD9639 family, while the manual itself is for the HD9630 series. No separate model-specific recall clearance or physical type-plate inspection was completed. Philips marks these listings discontinued; current resale stock, price, unit condition and warranty are not established.

What would make a different model better?

The Viva HD9230/56 is smaller, digital and includes a second rack level, but exact supply remains uncertain. The HD9220/28 is an analogue basket with documented 120 V / 50–60 Hz and a shorter 30-minute timer. Neither provides two independently timed foods; for that, compare COSORI CAF-R901-AUS. These are different layouts, not a universal ranking.
