Your needs, this model
Does it fit your priorities?
Is one cooking area enough, or do two dishes need separate settings at the same time?
Analogue two-knob controls, small basket and documented dishwasher care; strict 120 V request must reject.
Explore this need in the finder →Do you want local physical dials rather than a digital screen?
Yes. The exact model page and its linked operating instructions show local analogue controls; there is no second cooking zone.
Explore this need in the finder →Does the manufacturer’s linked care document permit dishwasher cleaning of the cooking parts?
Yes for the named removable pan and basket (and, for the HD9230/56, its included rack) after cooling. It does not identify coating chemistry.
Explore this need in the finder →Must 120 V be written on the exact specification?
Yes. This /26 sheet says 110 V, so it does not pass a 120 V / 60 Hz essential requirement even though it lists 50/60 Hz.
Explore this need in the finder →The Philips Viva Collection HD9220/26 is an earlier, discontinued one-basket air fryer for someone who wants a plainly specified small-batch routine rather than a large or connected cooker. Its exact U.S. product sheet calls the basket 0.8 kg, gives two local controls and a timer up to 30 minutes, and rates this exact suffix at 110 V / 50–60 Hz / 1,425 W. Philips still provides a user manual through this model’s support page, but the model is no longer a current new-product recommendation. This page identifies an exact HD9220/26; it does not assess any individual used unit.
What 0.8 kg tells you—and what it does not
Philips gives the basket capacity as 0.8 kg. That is a weight figure, not a quart volume and not a guaranteed serving count. The support-linked Viva manual gives ingredient-specific loading guidance: it tells you not to exceed the MAX mark or the food-table quantity, recommends smaller batches for more even cooking, and calls for shaking some layered foods halfway through. A large frozen-food label and a homemade-fries load are not interchangeable measures of how much room is left. Plan on checking the actual food chart and using space for air to circulate instead of treating the headline weight as a universal fill line.
The single drawer also means one temperature and one timer at a time. It can prepare a single batch of fries, snacks or a small roast, but it cannot keep two foods at different settings and bring them to the table together. If your routine involves a protein plus a side that need unlike times, cook them sequentially or choose a real dual-zone arrangement. Philips lists this appliance for frying, baking, grilling and roasting; those are methods within the same cooking area, not four separate chambers.
Two physical controls, with a short timer ceiling
Unlike the digital Viva models in the same broader family, the HD9220/26’s exact manufacturer materials and linked manual show analogue temperature and timer controls. The manual describes a temperature setting from 180 to 390°F (80–200°C) and a timer/power control up to 30 minutes. There is no documented preset menu, digital screen, remote phone control or Dehydrate mode. The manual says to add three minutes when starting cold; it also describes an optional empty preheat using the timer, but there is no dedicated preheat program. For recipes longer than 30 minutes, expect to inspect the food and set another interval rather than relying on one unattended long cycle.
That simple panel is appealing if you prefer knobs and do not want to step through a touchscreen. Its limits are equally concrete: no precise saved cook program, no second independent zone, and no single timer run beyond the documented half hour. The on-device ready signal and automatic shutoff do not eliminate the need to check food, especially when a basket is crowded or ingredients vary in thickness.
Cleanup is documented; coating chemistry is not
The manual linked from the exact HD9220/26 support page allows the removable pan and basket to go in a dishwasher after cooling. For hand washing, Philips recommends hot water, dish soap and a non-abrasive sponge. The parts have a nonstick coating, so the manual warns against metal utensils and abrasive cleaning tools. The technical sheet identifies a plastic main body. None of those statements names the food-contact coating chemistry or says the surfaces are PFAS-free. If that disclosure is essential, this model does not satisfy the requirement; an unknown coating is not evidence either way.
Use the instruction to empty oil from the pan after cooking, let the appliance cool before washing, and keep the air openings unobstructed. For a secondhand purchase, inspect the coating, drawer fit, power cord and exact product label yourself. Philips marks the model discontinued, and no exact current price, seller stock, remaining warranty or unit-specific recall clearance is established here.
The suffix changes the electrical decision
The U.S. all-products directory and exact product sheet identify a black HD9220/26 with an 800 g basket. The exact technical table says 110 V, 50/60 Hz and 1,425 W. A strict matcher that asks for both published 120 V and 60 Hz therefore rejects this model: the sheet does give the frequency range, but its voltage figure is 110 V. Do not transfer the 120 V rating from the superficially similar HD9220/28 or another HD9220 suffix. The basic exterior shape may look close, but electrical tables and package details belong to exact model codes.

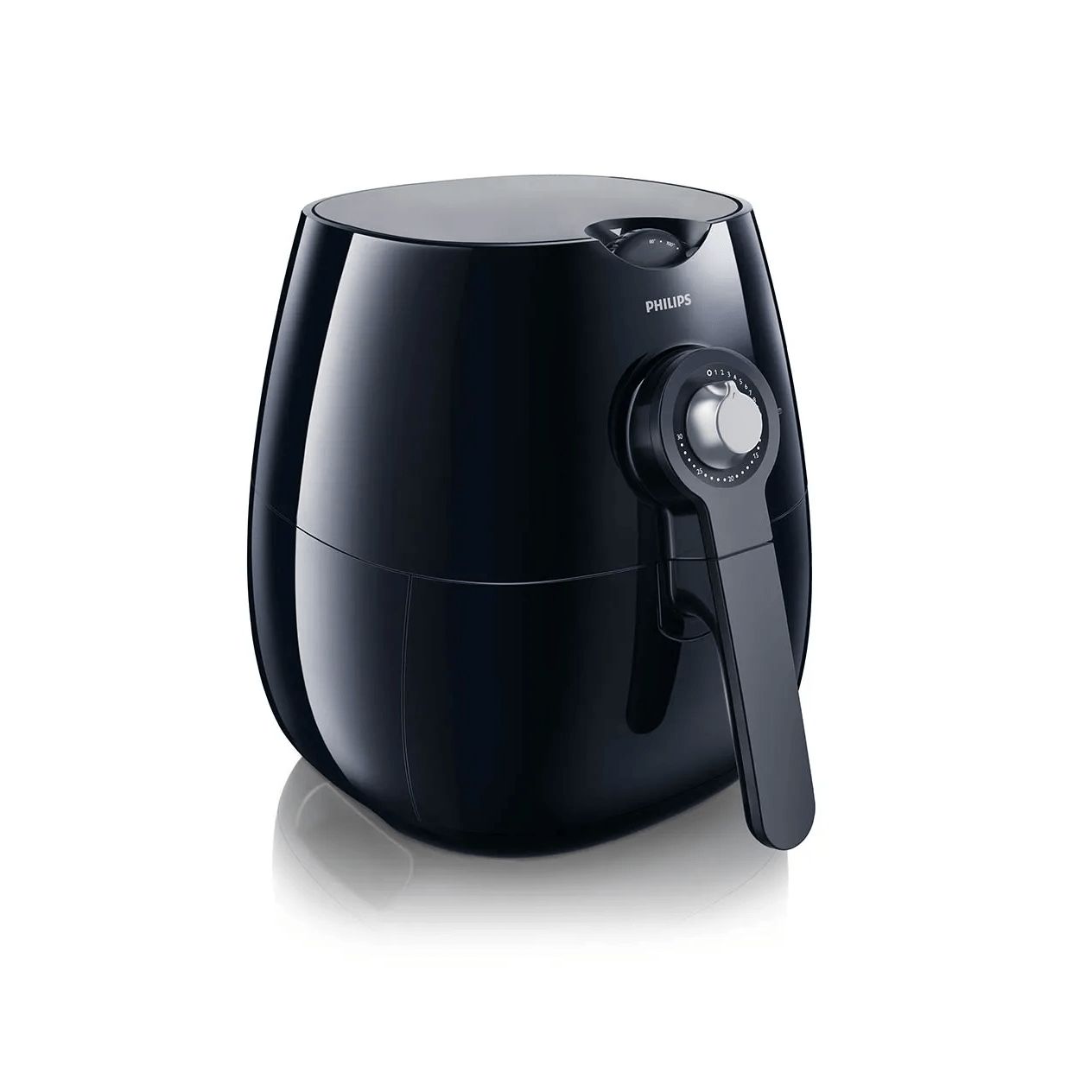

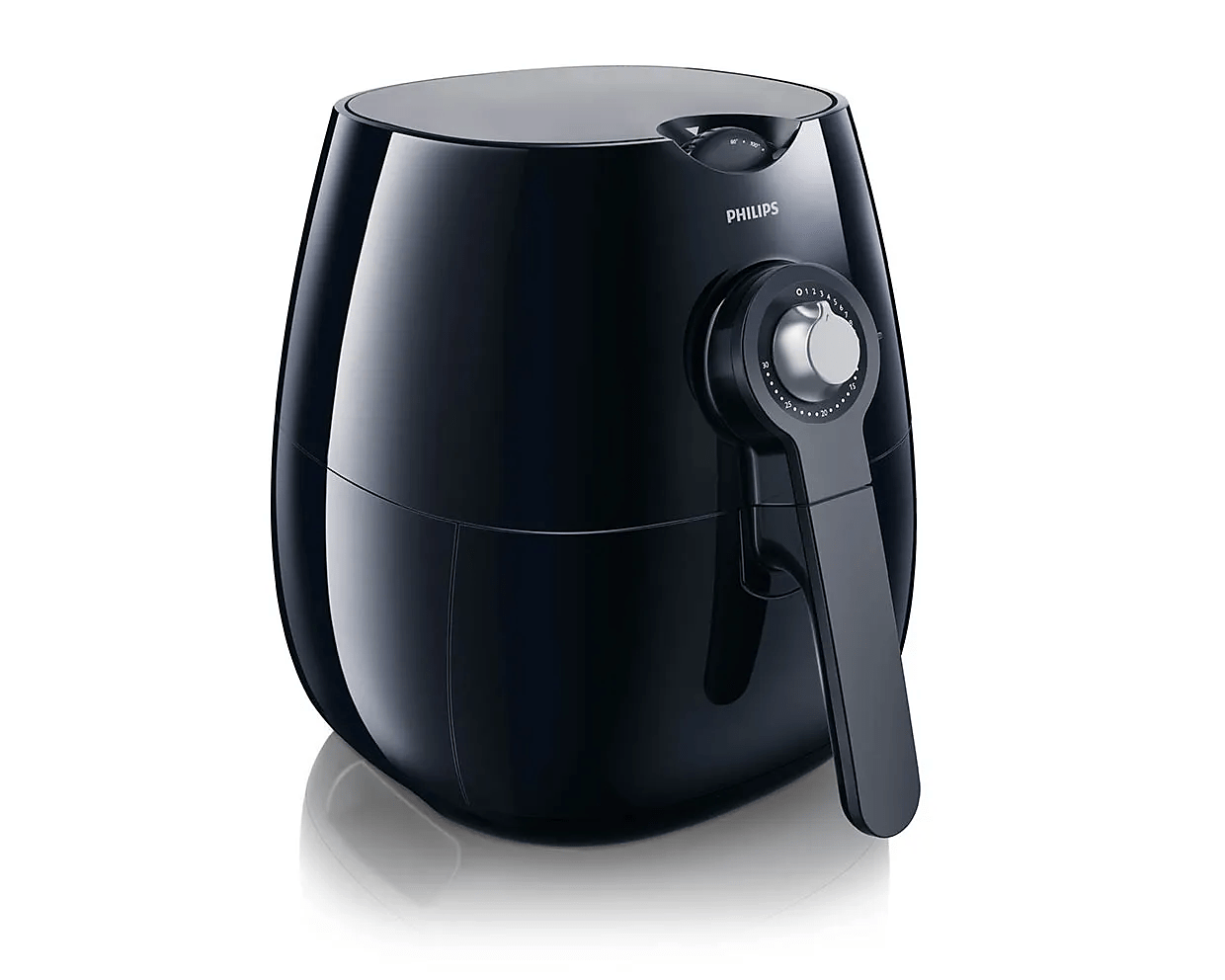

The product page labels this exact model discontinued. A separate support-linked manual is useful for operating and care details, but it does not show that Philips still sells it new. The manufacturer’s standard product image is associated with the exact page and shows a black body with two dials; Philips does not disclose whether the studio image is photography or a render. A used listing should be matched by its bottom label, not just by a similar-looking HD9220 family name.
Alternatives with different tradeoffs
If you want to stay with an analogue, 0.8 kg basket but require a manufacturer-published 120 V / 60 Hz entry, compare the distinct HD9220/28; it is also discontinued, and its sheet differs electrically. For a digital interface and an included upper rack, the white HD9230/56 offers a different control routine but retains a small basket and unresolved voltage conflict. If batch size is the priority, the much larger HD9630/28 is a 7.3 L XXL pan with a 1.4 kg stated fries load, not a compact substitute. None turns the HD9220/26 into a dual-zone appliance or changes its exact 110 V documentation.

Key details at a glance
| Pull-out basket units | 1 |
|---|---|
| Maximum independent cooking zones | 1 |
| Lowest documented setting | 180°F |
| Highest documented setting | 390°F |
| Cooking functions | Philips documents the functions listed here for this exact model. A single basket and one zone remain the supported plan; no function creates separate independently controlled areas. |
| Basket and crisper-plate material | The retrieved exact manual describes nonstick cooking surfaces but does not identify coating chemistry or give an explicit PFAS-free statement. |
| Exact configuration note | An earlier, discontinued Philips Viva model with a nominal 0.8 kg basket, two local analogue controls and a 30-minute timer. Exact suffix matters; no neighboring Philips configuration or seller bundle is assumed. |
| See-through cooking window | No |
| Dishwasher-safe pan or basket | Yes |
| Listed power | 1425 W |
| Listed supply | 110 V / 50/60 Hz |
Use the exact model’s instructions for operating limits, supplied equipment and version differences.
Sources for this assessment
- Philips U.S. Viva Collection Airfryer HD9220/26 exact product page
- Philips U.S. exact support page for HD9220/26
- Philips U.S. all-products directory page 3 with exact product row
- Philips U.S. gallery image on exact HD9220/26 page
- Philips technical specification for exact HD9220/26
- Philips Viva Collection manual directly linked from the exact support page
